Features of Wire Mesh Welding Machine GWCP800T
 |

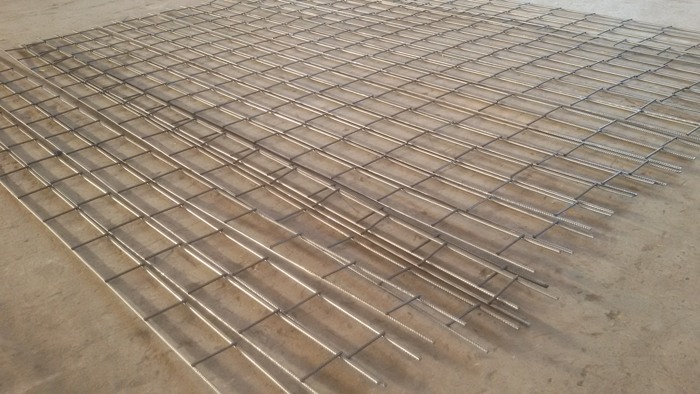

GWCP800-T is workable with 2 pieces width 75mm-200mm ladder shape mesh，high quality which no burr on the cross wire. |
| Both line wire and cross wire are coil wires, full automatic high-efficiency production high-quality product. |  |
 |
Line wire diameter 5-12mm, cross wire diameter 5-8mm. |
| Welding speed 50-60 strokes/min. |  |
 |
Only one operator is needed low cost. |
Technical Data of Wire Mesh Welding Machine GWCP800T
| Max Width | 2*160mm |
| Line wire gap | 70mm-120mm |
| Cross wire gap | ≥100mm |
| Line wire diameter | 8mm-12mm coil |
| Cross wire diameter | 6mm-8mm coil |
| Max speed | 40-60 strokes/min |
| Welding points | 4 |
| Welding capacity | 12mm+8mm |
| Air consumption | ≥0.7MPa,3.0m³/min |
| Water consumption | ≥0.2MPa,0.5m³/min |
| Power | 2*100KVA |
| Voltage | DC24V |
| Max length | 3M-4M |
